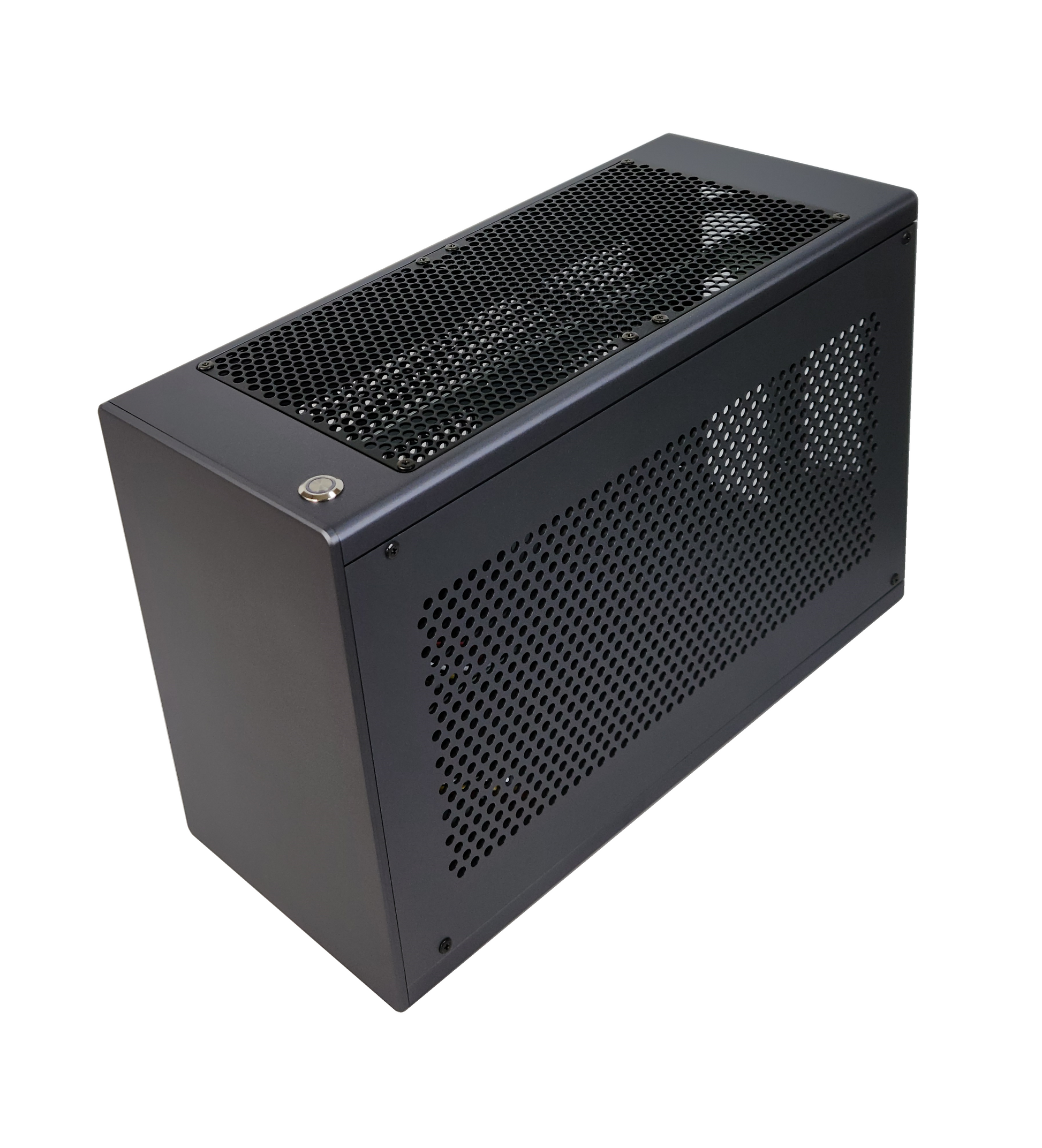

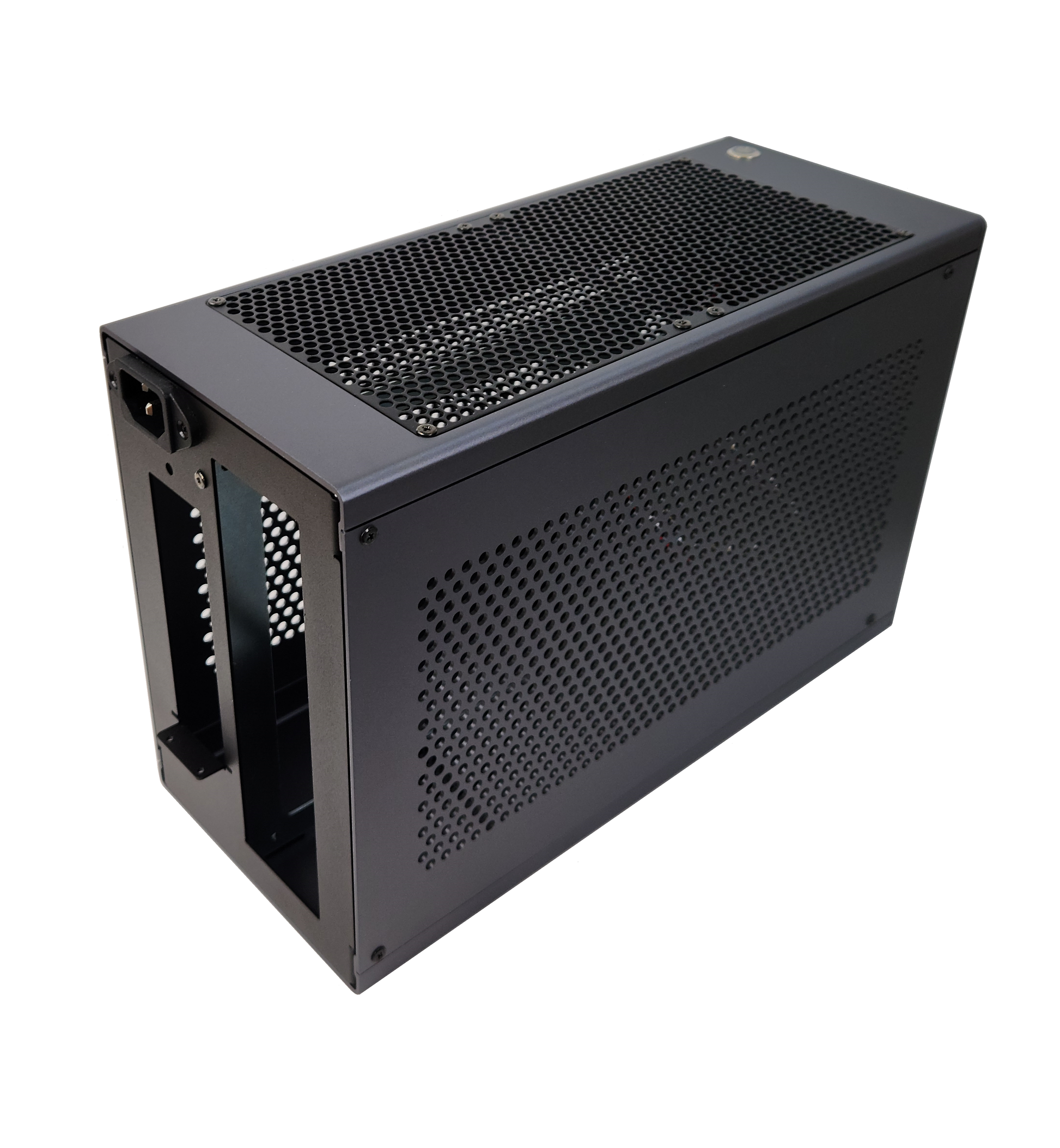

MIDORI 7.5L-V2.1 Dark gray Mini ITX PC Case



This product is computer case made of aluminum alloy.

The dimension of assembled product is

305mm x 197mm x 127mm.


■Attached cable■

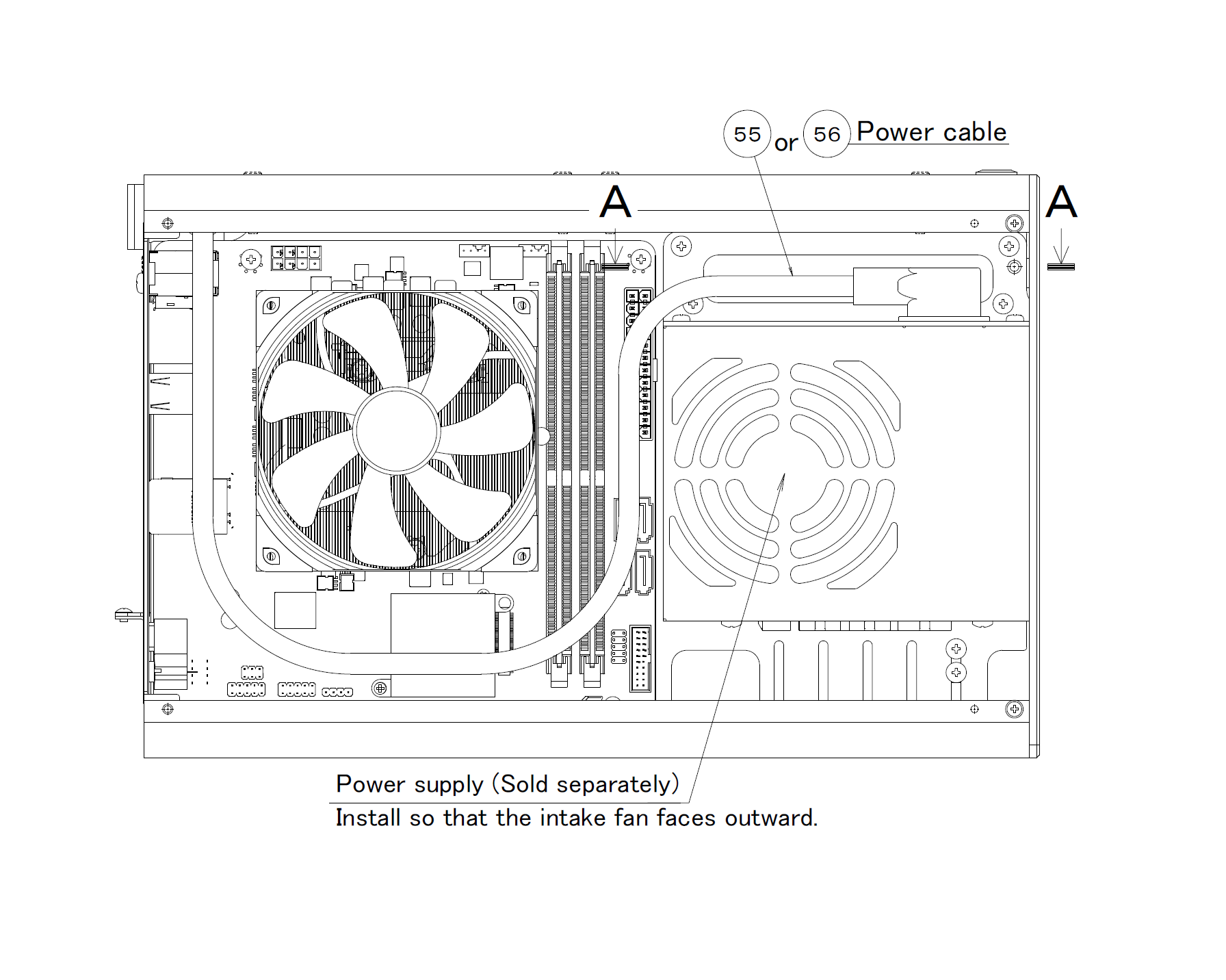

Power cable: 10A 125-250V AC

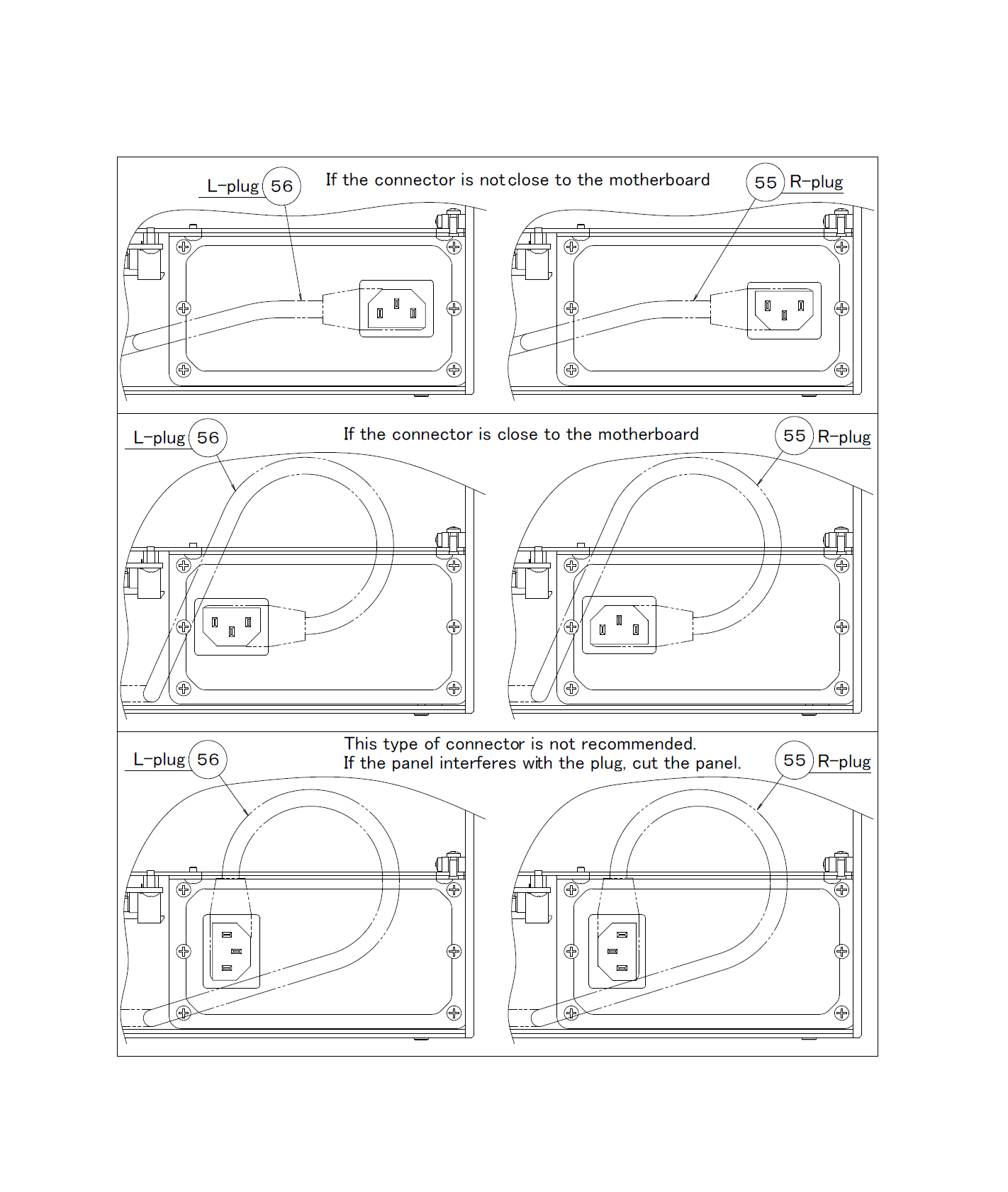

Both Power cable L-Plug and R-Plug are included.

Please select raiser cable!


■Compatible parts ■

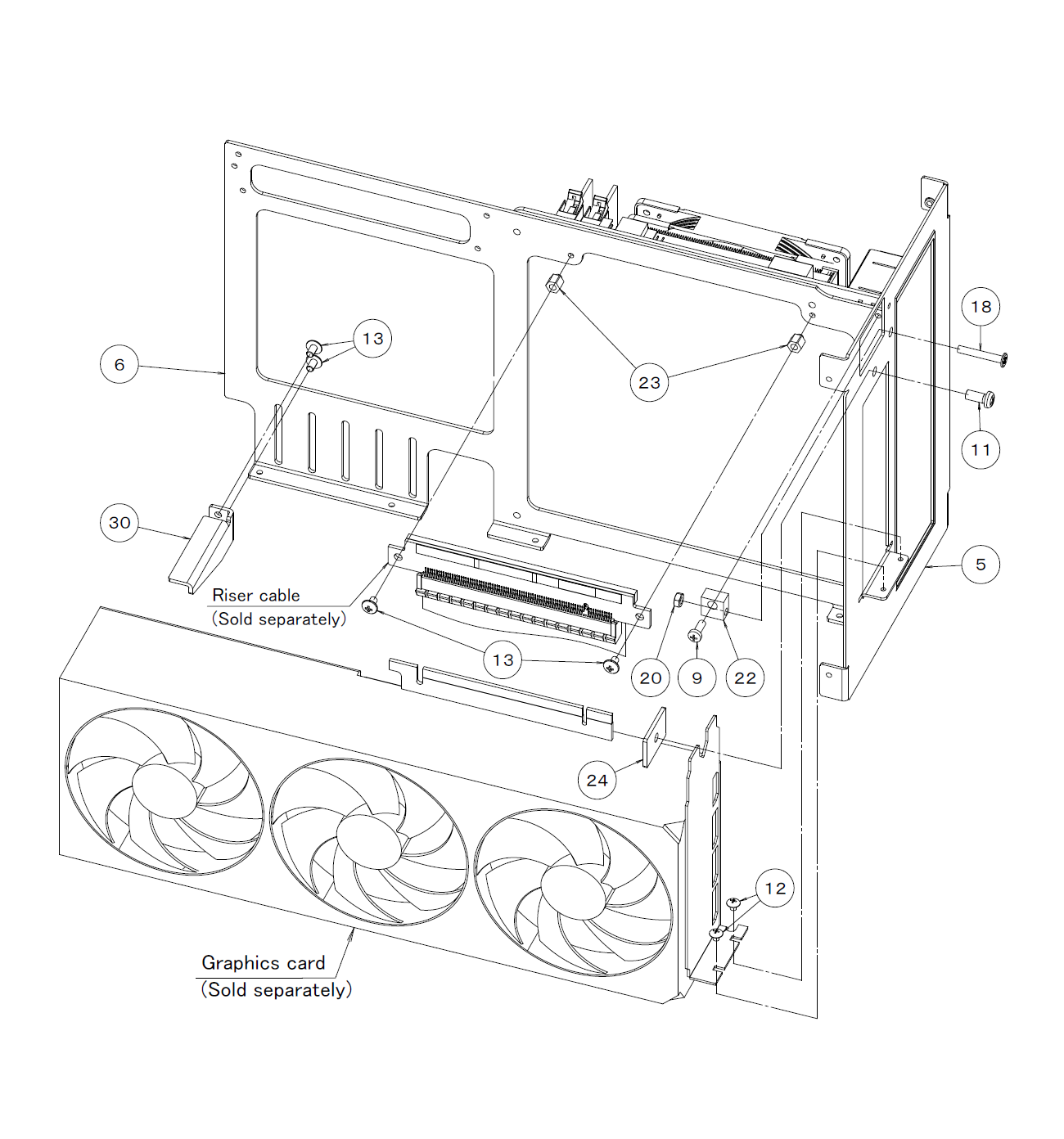

Raiser cable:

Raiser cable is included if you select the option with riser cable.
you can also purchase from other suppliers according to the following specification.
https://midori-computer.com/pages/community



Motherboard: Mini ITX 170mm x 170mm



CPU cooler: up to 52mm high



Memory: up to 52mm high



Graphics card Max.: 300mm x 53mm x 134mm.

(+17mm cable space)

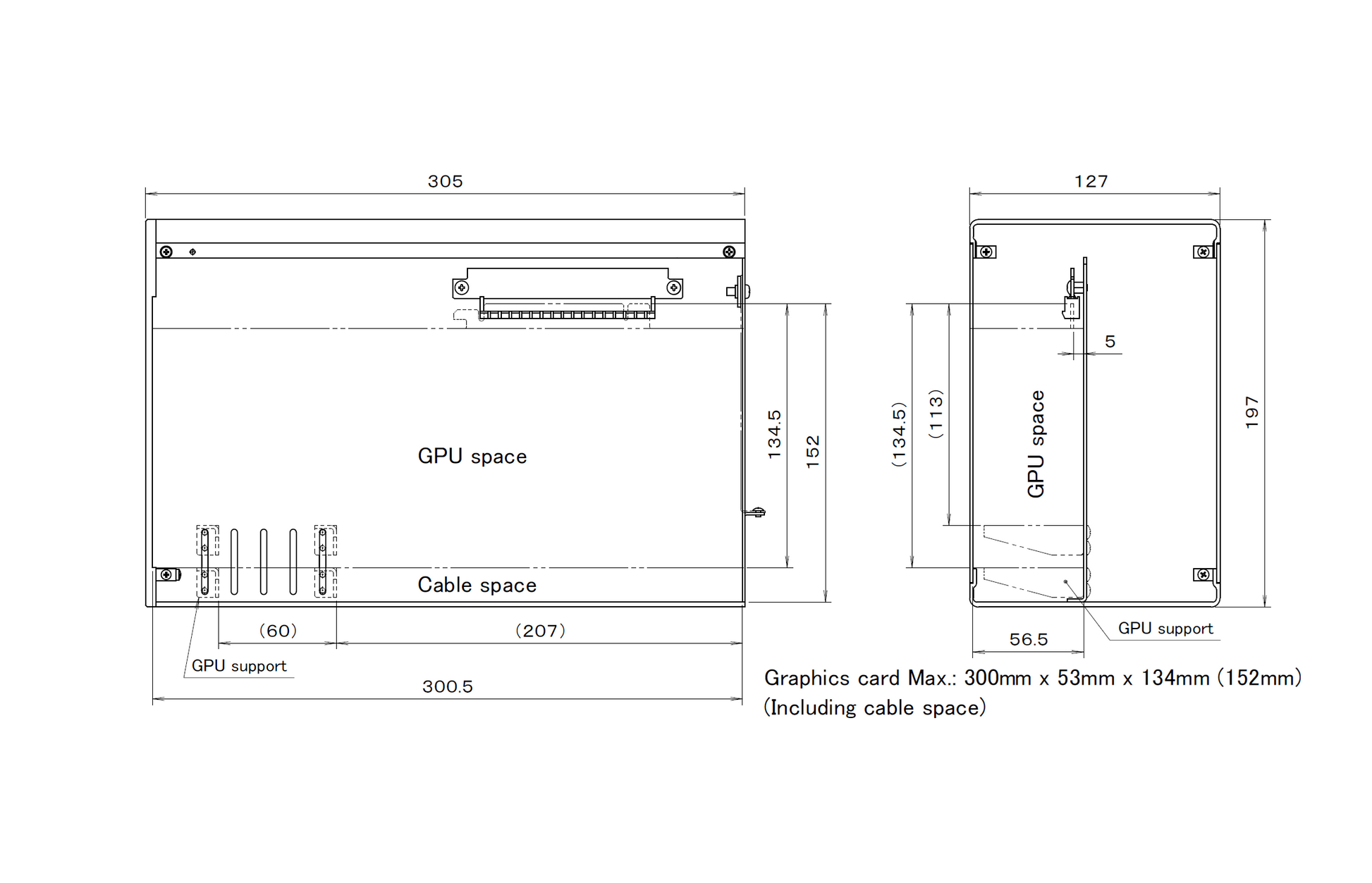

Please check attached drawing of GPU space.

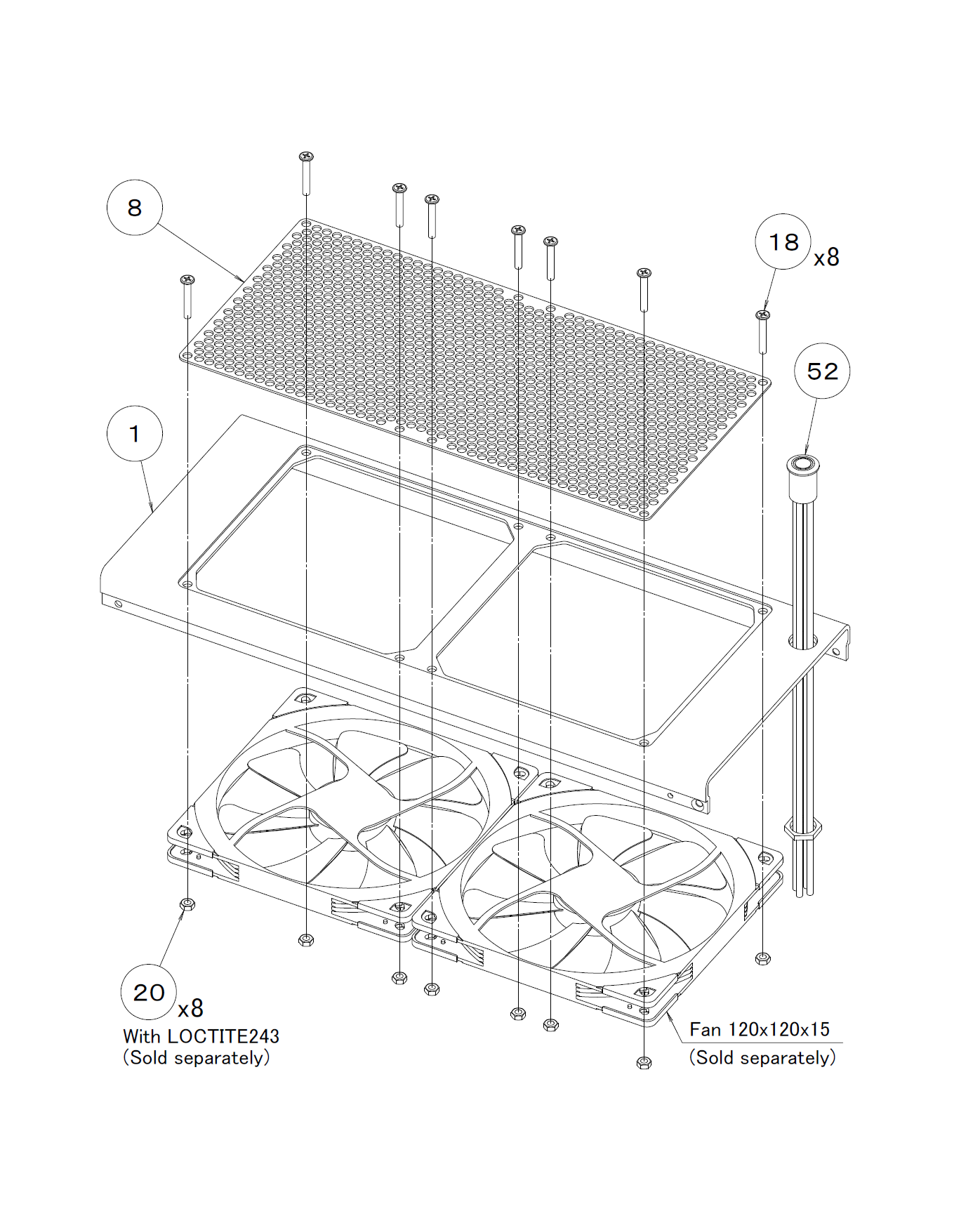

Case fan: 120mm x 120mm x 15mm x 2 fans



Drive bay: No drive bay!



Please check the link below about compatible parts.

■Revision history■
V2.1

The length of assembled product is changed from 303mm to 305mm.
The quality of front panel is improved.
