MIDORI 5L-V2.4 Dark gray Mini ITX PC Case
MIDORI 5L-V2.4 Dark gray Mini ITX PC Case
Regular price
¥17,800 JPY
Regular price
Sale price
¥17,800 JPY
Unit price
per
Couldn't load pickup availability
You will be charged import duty and tax when you receive the goods!
Please check the following video and select power cable!
■Description■

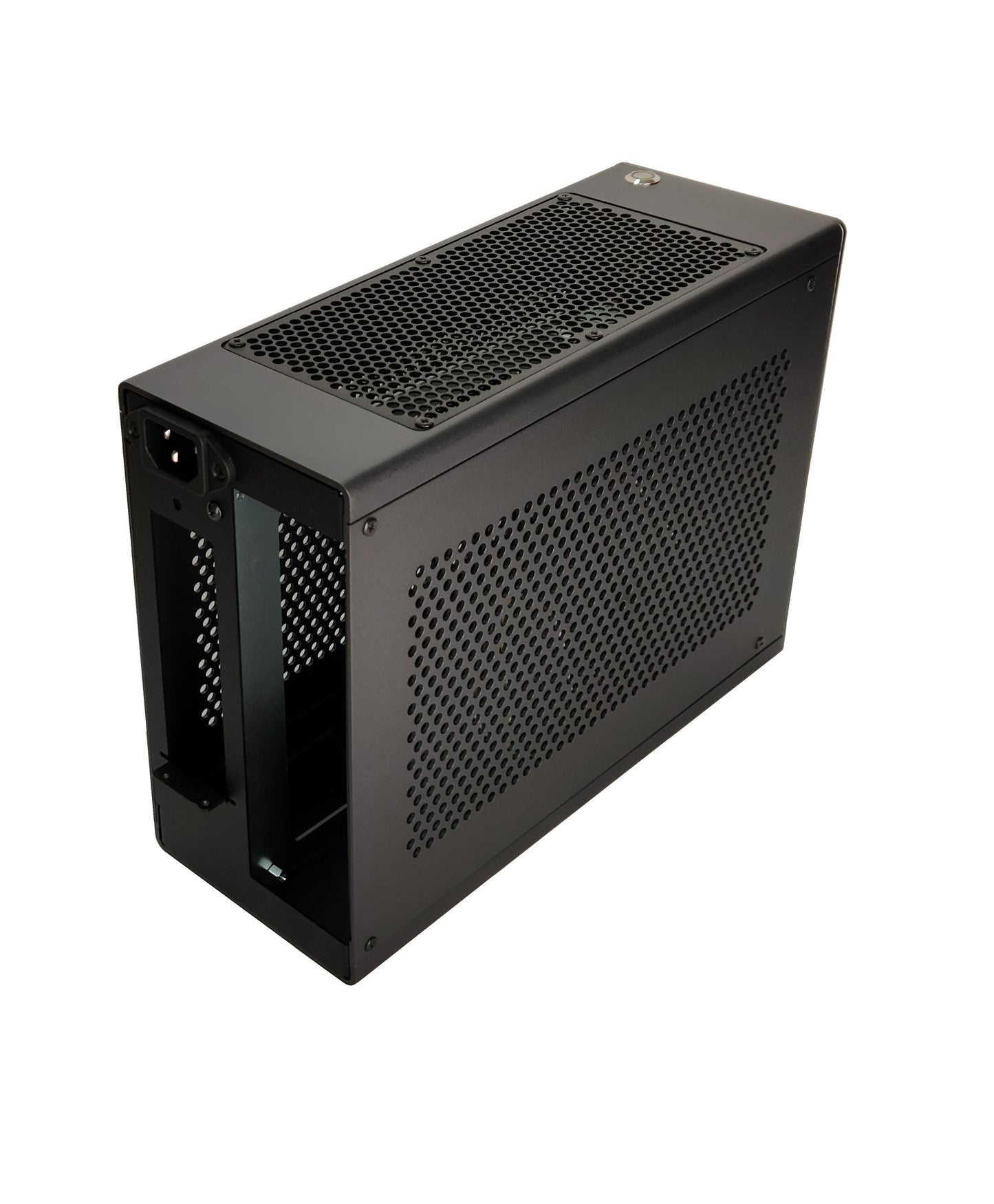

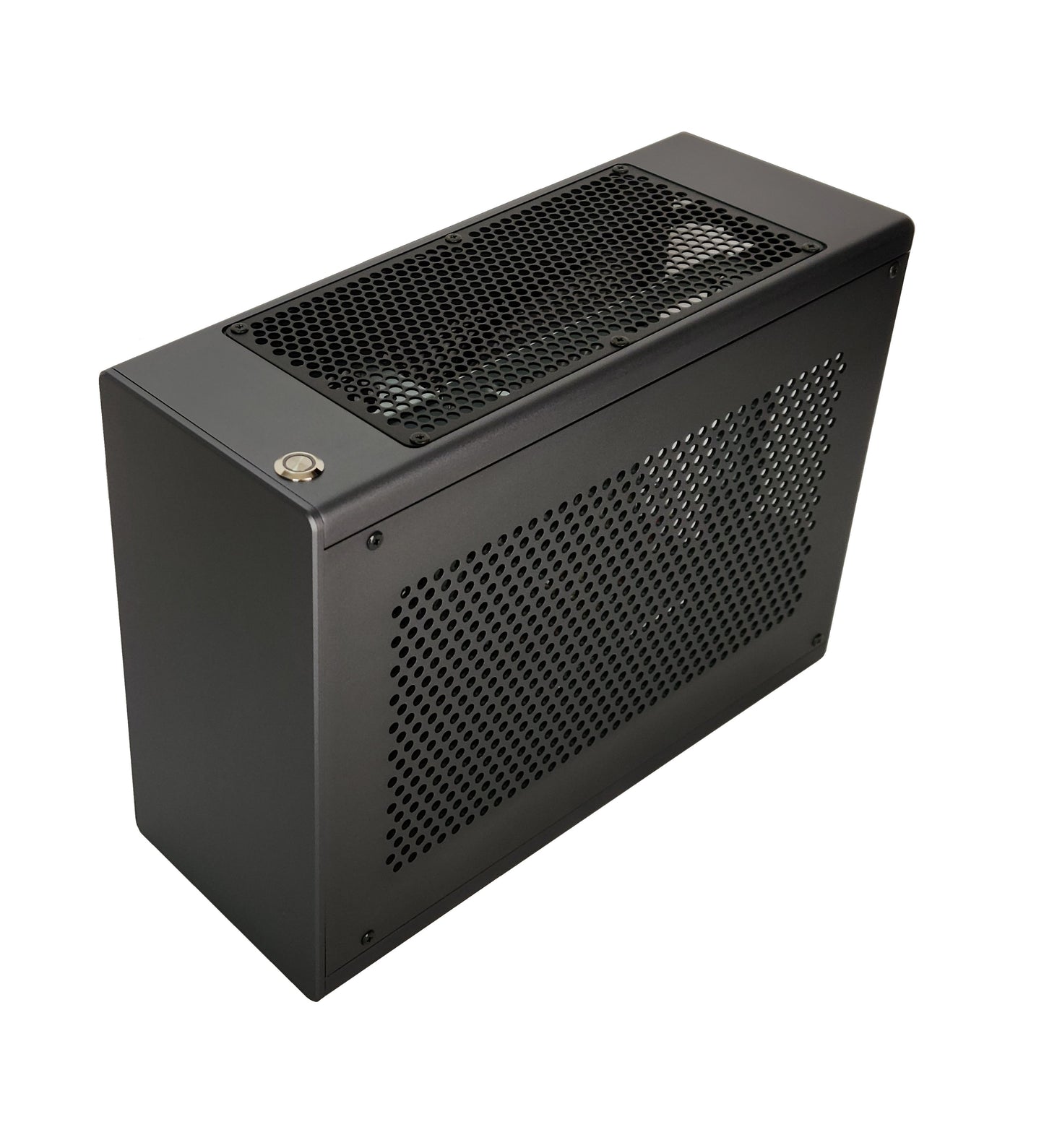

This product is computer case made of aluminum alloy.
The dimension of assembled product is
266mm x 197mm x 103mm.
■Attached cable■
Power cable: 10A 125-250V AC

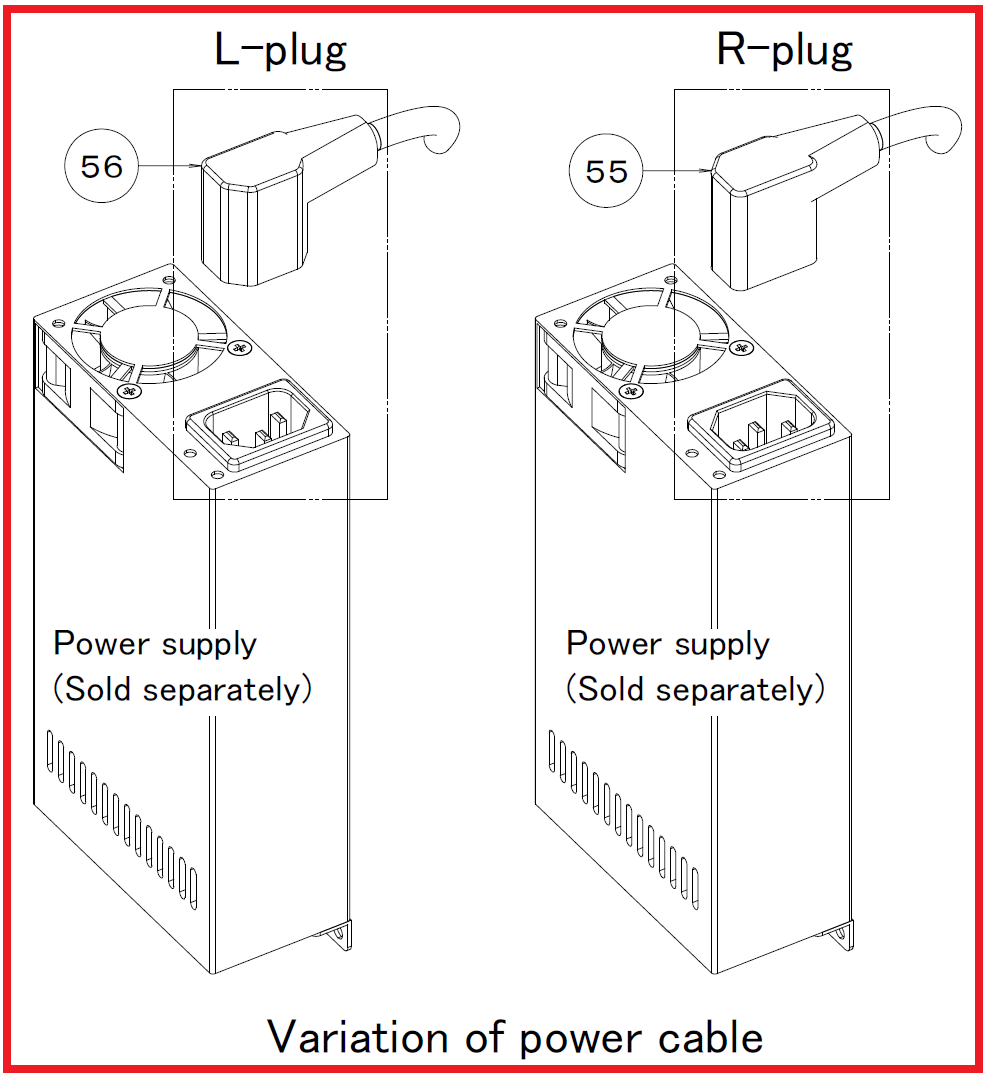

Please select power cable from L-Plug and
R-Plug according to your power supply!
If you select L+R-Plug, both cables will be included.
Raiser cable is not included!
■Compatible parts ■
Raiser cable:
Raiser cable sold separately by Midori Computer.
You can buy on the link below.
PCIe 4.0: https://midori-computer.com/riser
PCIe 3.0: https://midori-computer.com/adt
You can buy on the link below.
PCIe 4.0: https://midori-computer.com/riser
PCIe 3.0: https://midori-computer.com/adt

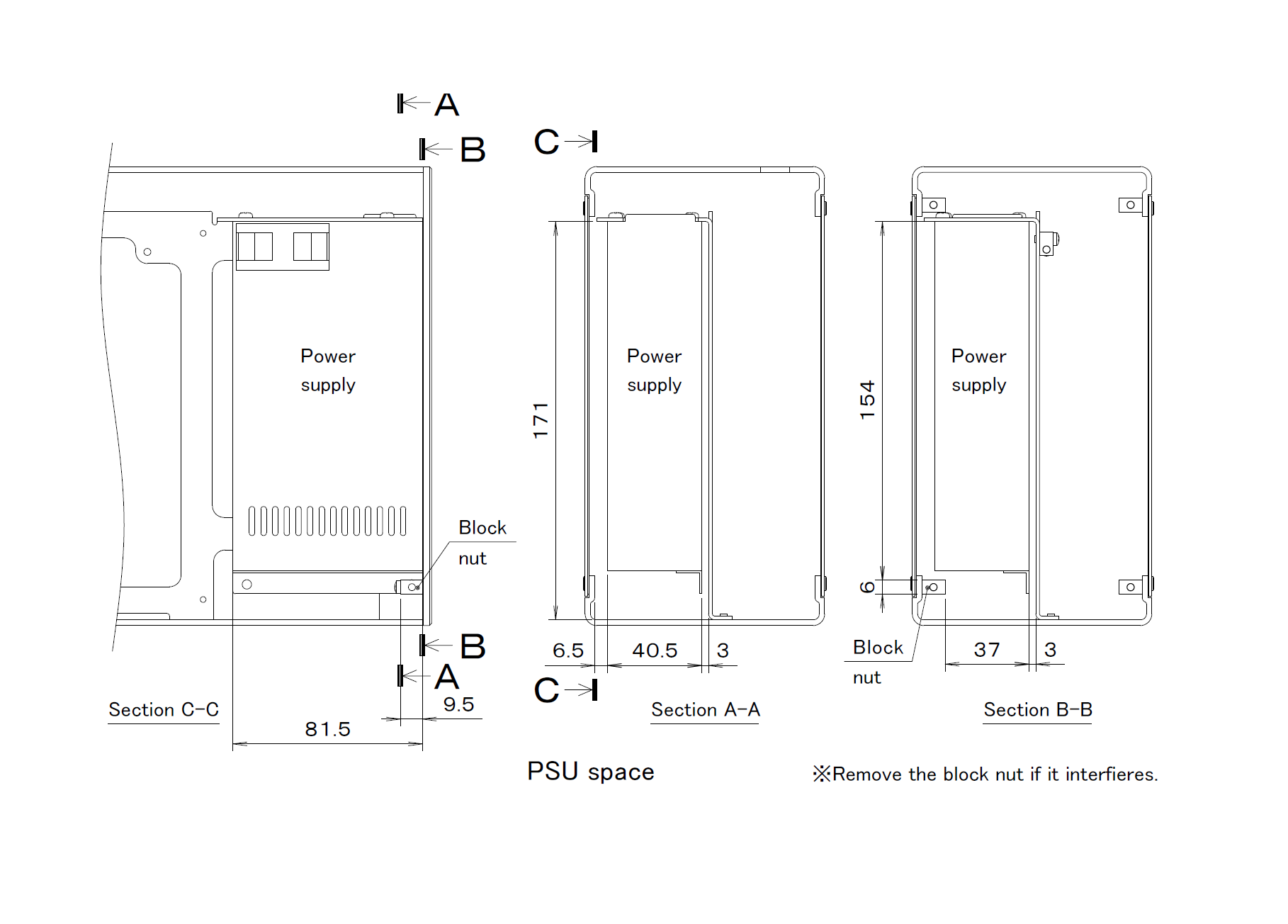

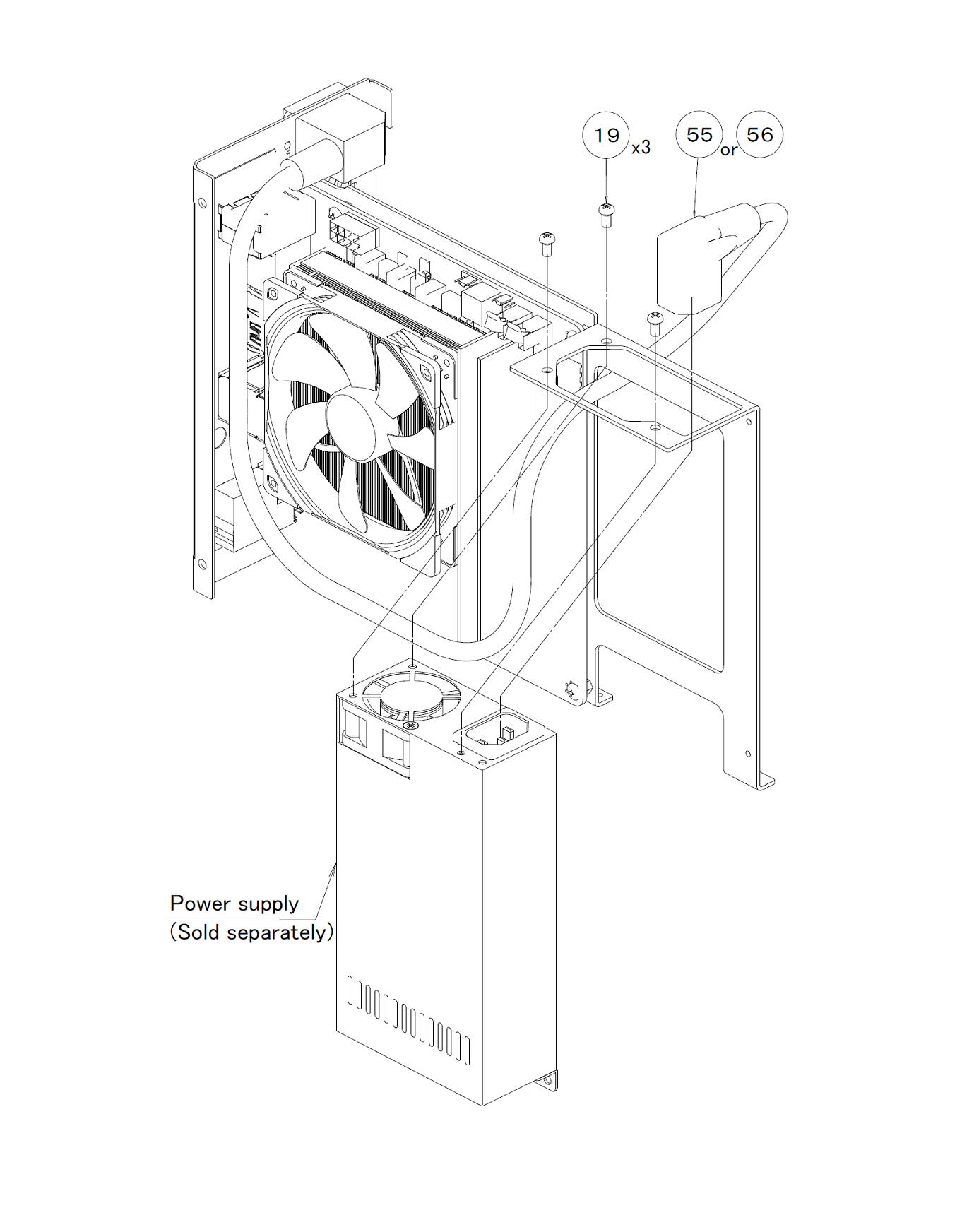

Power supply: Flex ATX
The maximum length of power supply is 171mm.
Please check attached drawing of PSU space.
Minimum cable lengths are below.
ATX cable (20+4pin): 250mm
CPU power cable (4+4pin): 350mm
GPU power cable: 250mm
SATA & Peripheral power cable: Not needed
The shorter cable is better because the cable space is small.

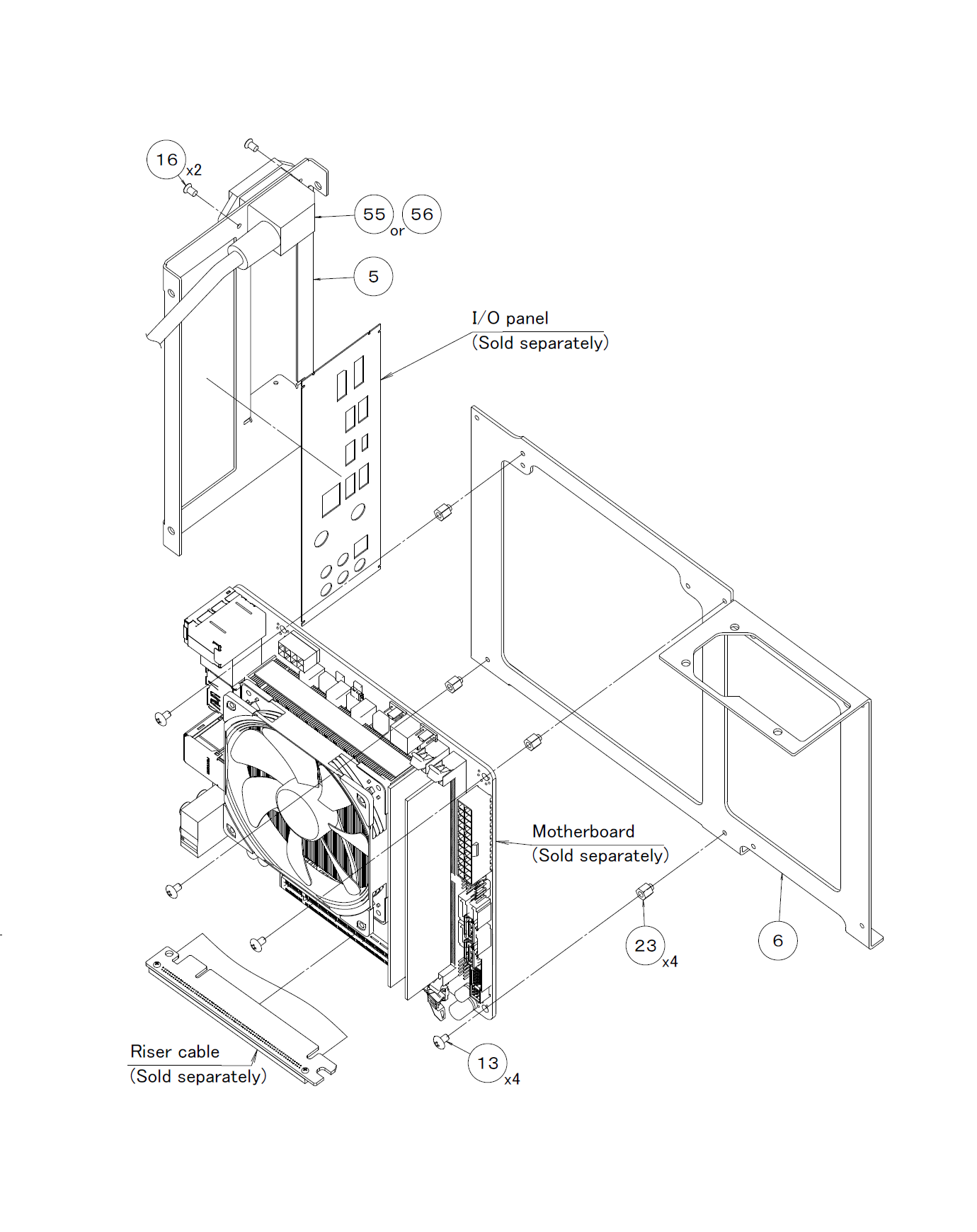

Motherboard: Mini ITX 170mm x 170mm
CPU cooler: up to 38mm high
Memory: up to 38mm high
It's better for cable management if it doesn't have a large heat sink.

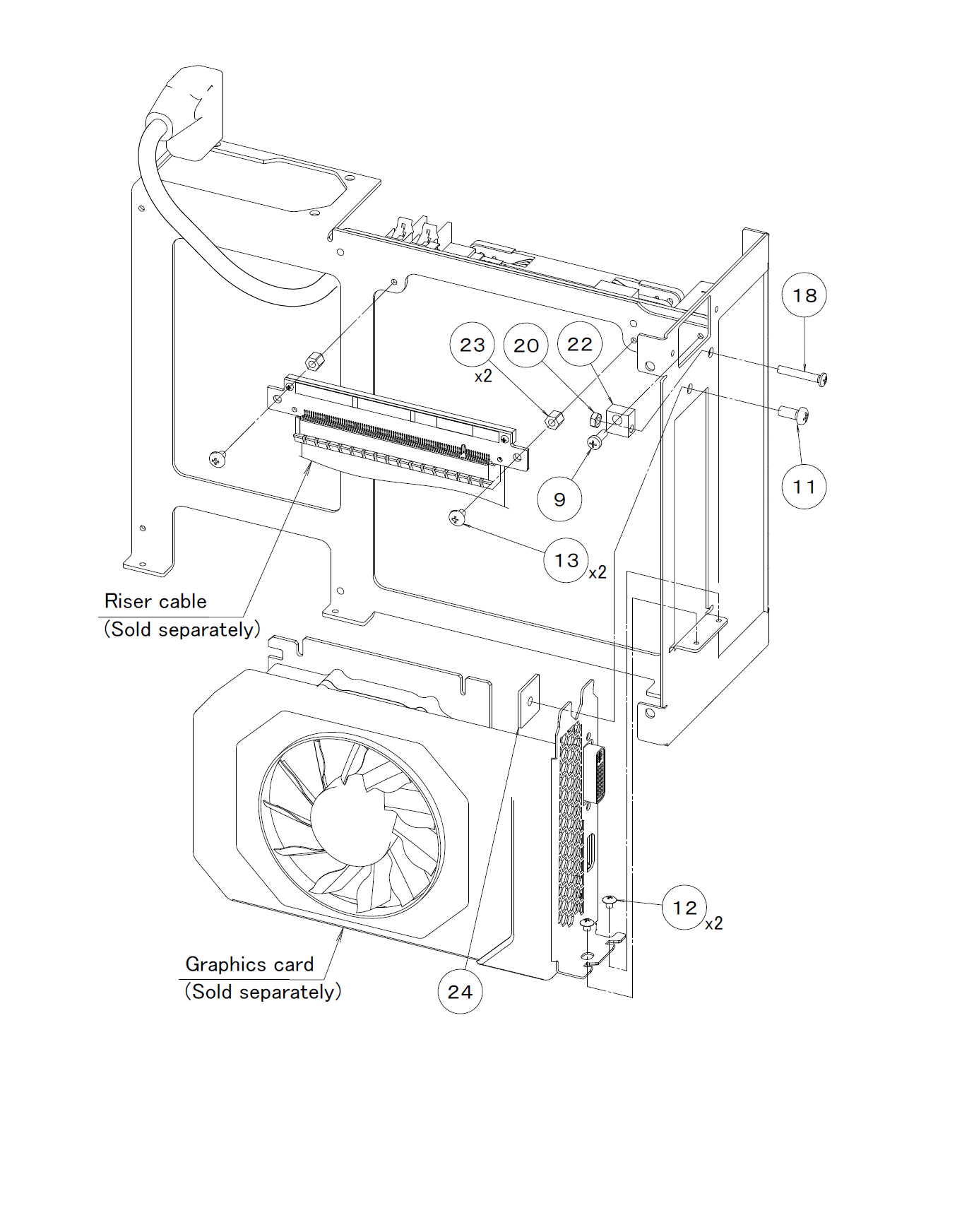

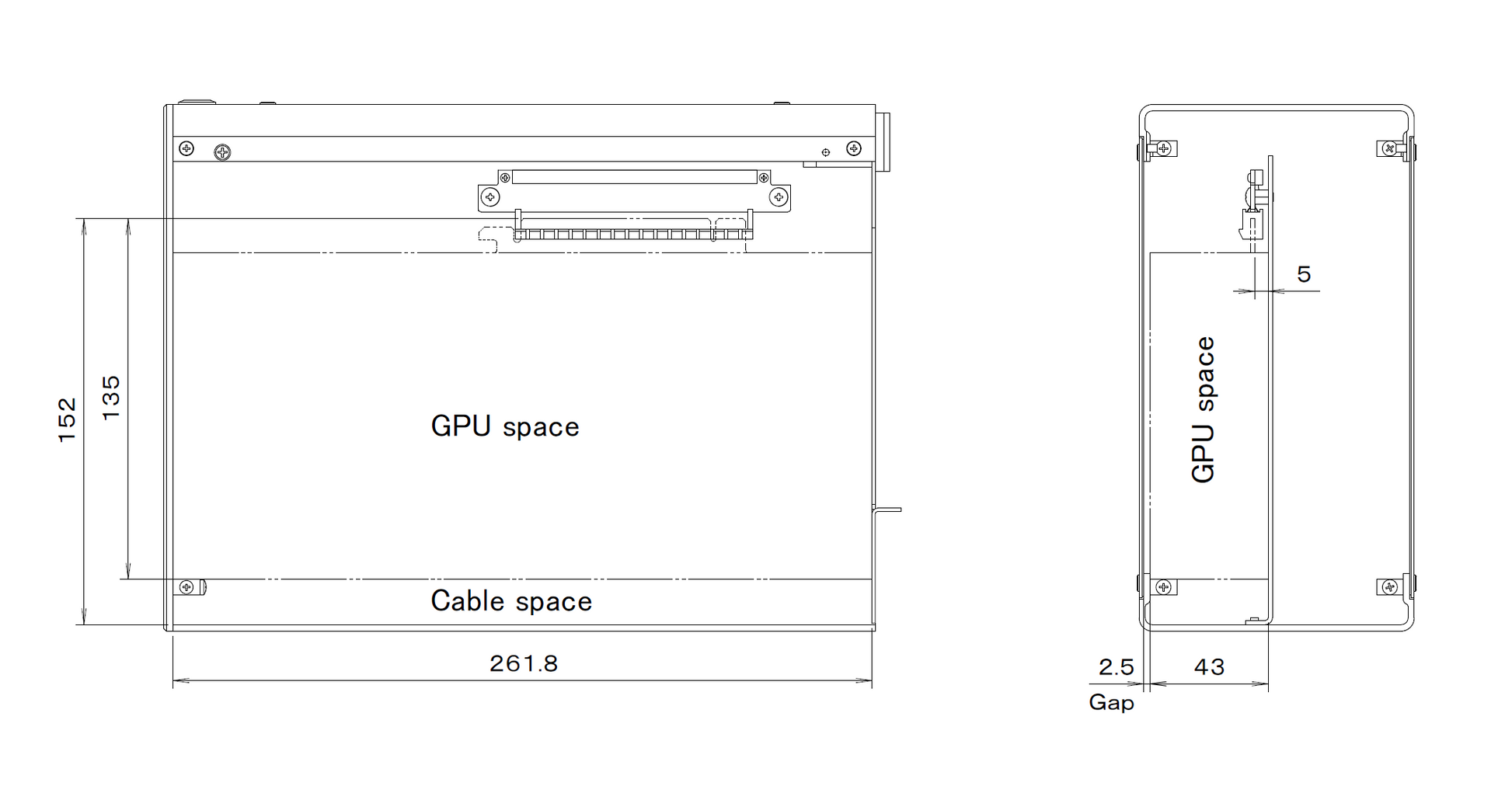

Graphics card Max.: 261mm x 42mm x 135mm
(+17mm cable space)
Please check attached drawing of GPU space.

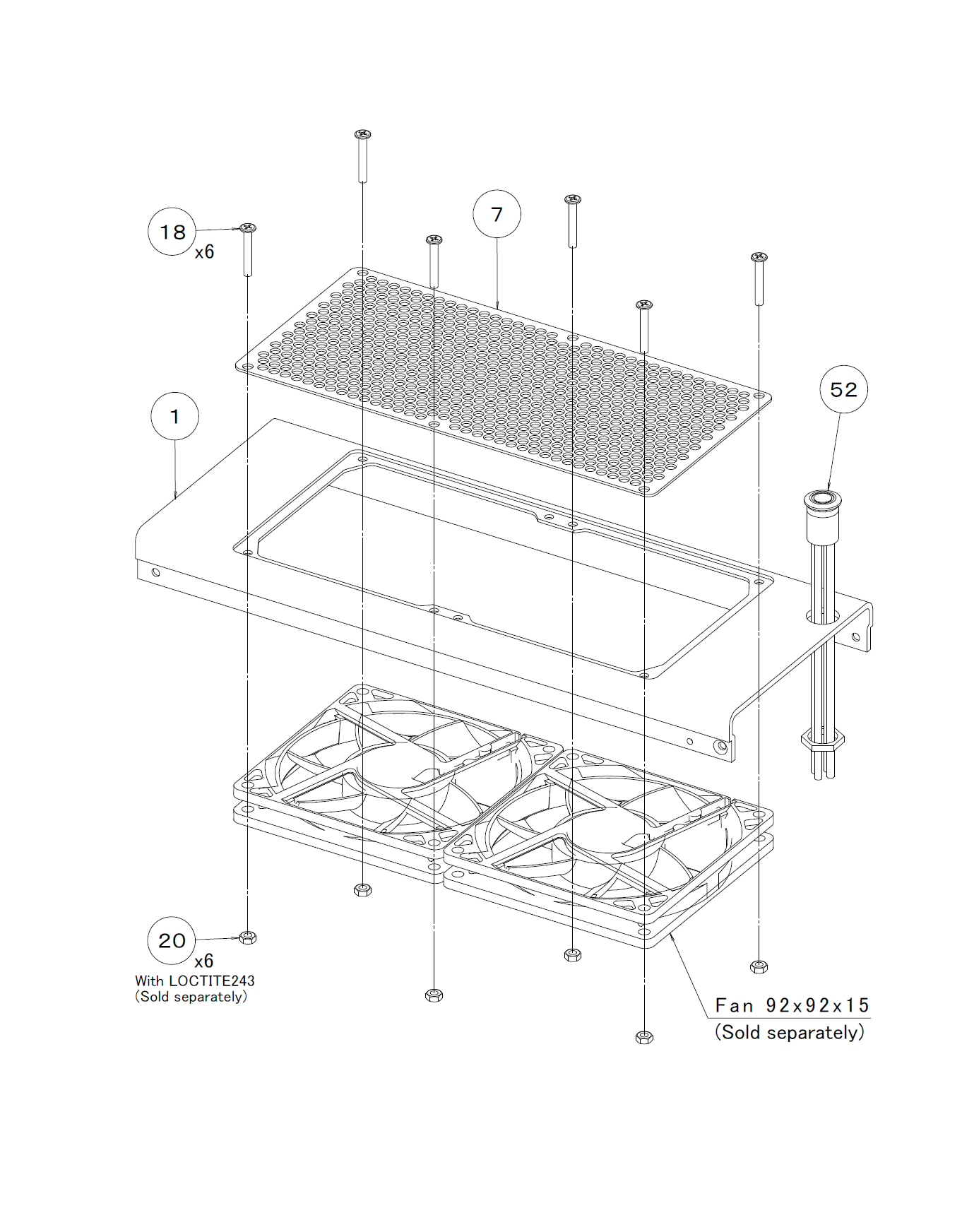

Case fan: 92mm x 92mm x 15mm x 2 fans
Drive bay: No drive bay!
Please check the link below about compatible parts.
■Revision history■
V2.1
Max. GPU size is increased from 261mmx43mmx131mm to 261mmx43mmx133mm.
V2.2
PSU space and PSU’s cable space is increased. Drive bay is removed.
V2.3
Max. GPU size is increased from 261mmx43mmx133mm to 261mmx43mmx135mm. Thickness of side panel is increased from 1.2mm to 1.6mm.
V2.4
Max. GPU size is changed from 261mmx43mmx133mm to 261mmx42mmx135mm. Max. height of CPU cooler and memory is changed from 37mm to 38mm.
